- Place of Origin:CN;GUA
- Brand Name:CZ-208
- Model Number:CZ-208
- Product name:LED Pick and Place Machine
- Model Number:CZ-208
- PCB Size:Max 1.5m
- Quantity of nountin:8
- CPH:85000
- Warranty:1 Year
- Usage:pick and place components
- Packaging:Wooden Box
- Application:led products
- Payment:T/T
Product Description

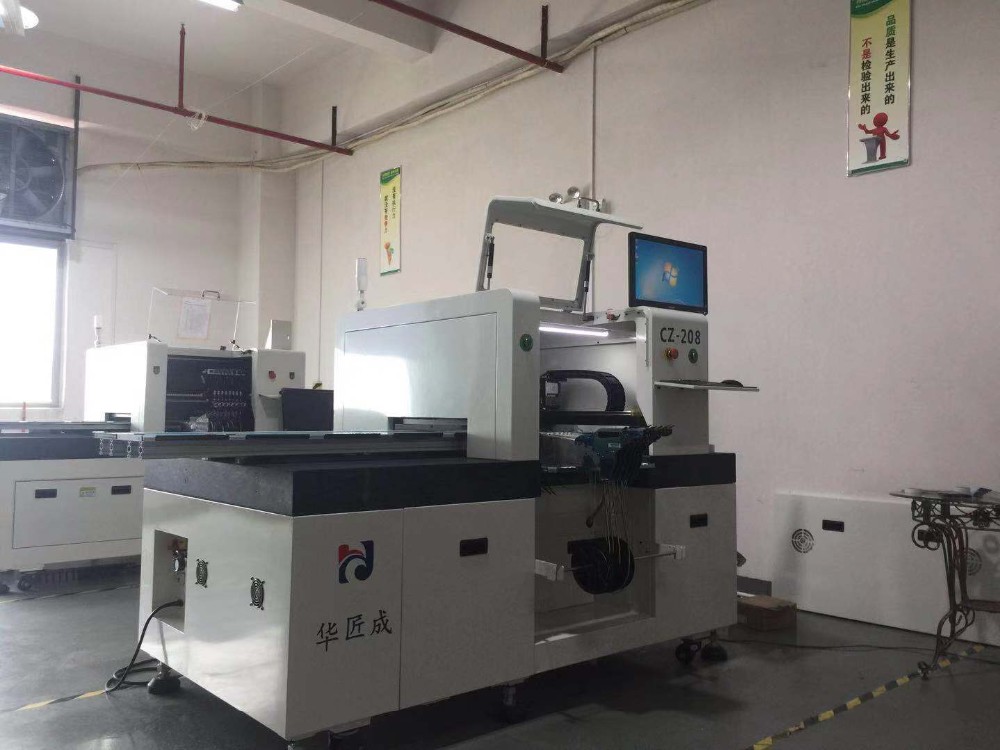

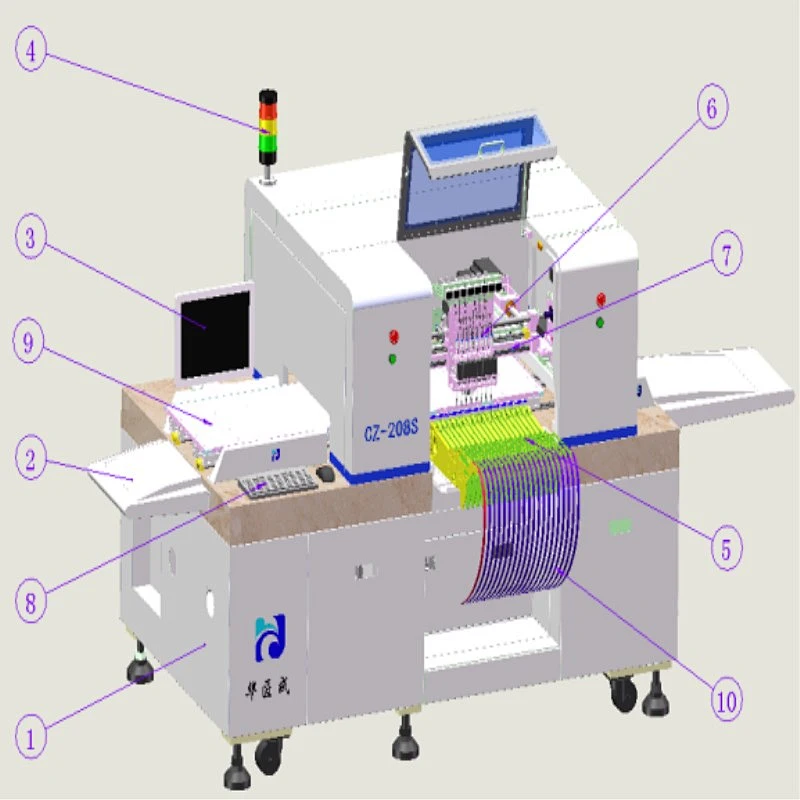

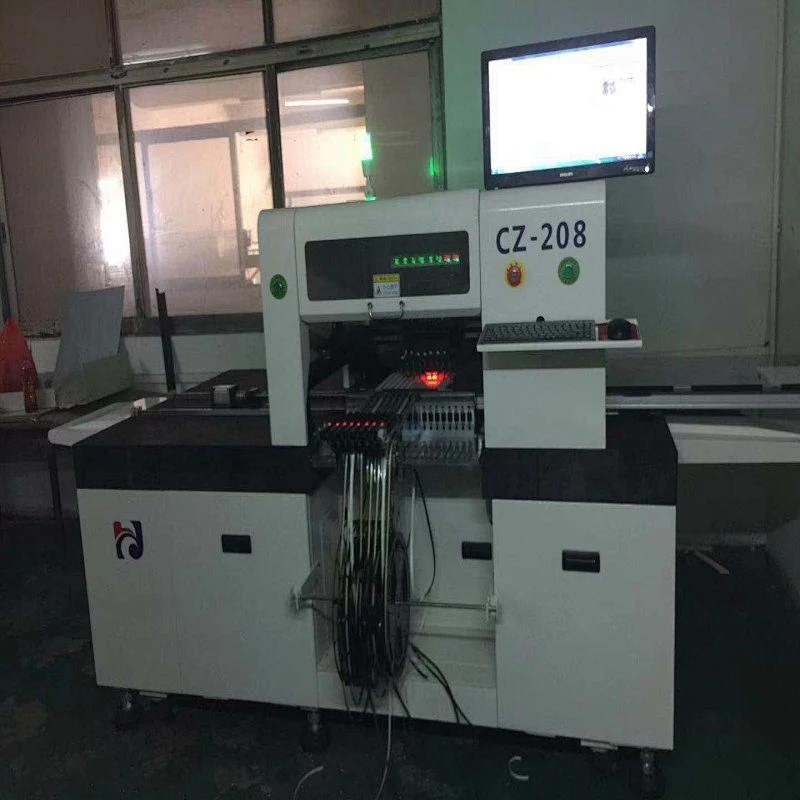

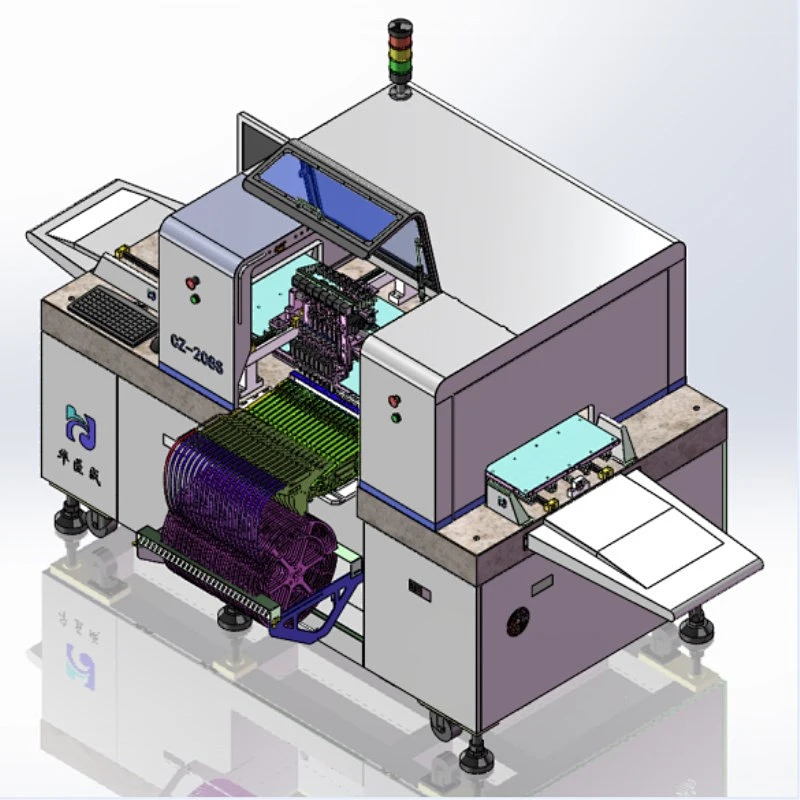

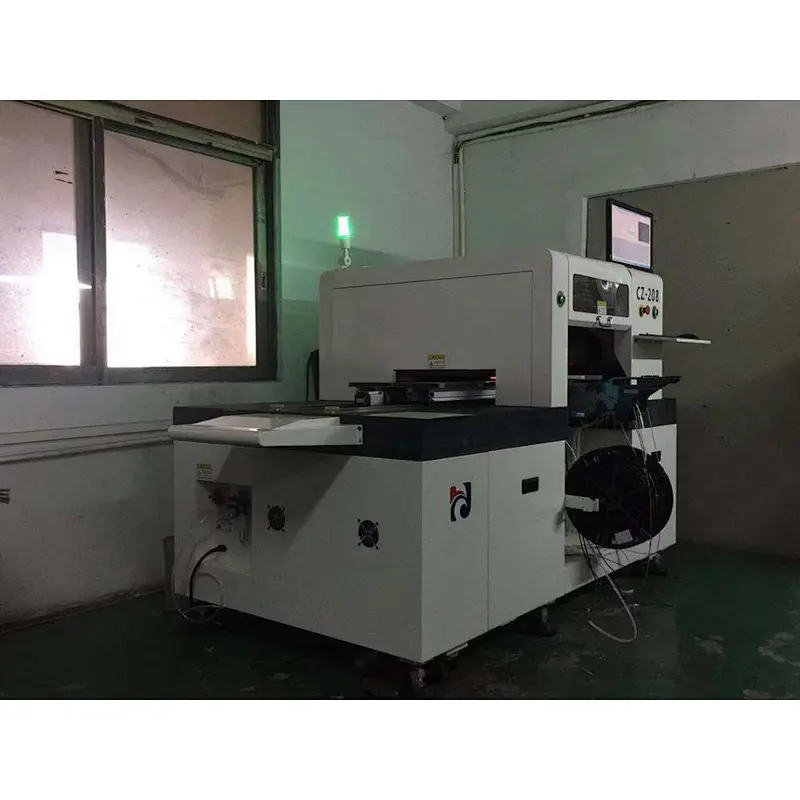

High Speed 85000 CPH for Led Light Assembly Pick And Place Machine/SMT PCB Surface Mounting machine
[Description]
CZ-208 semi-auto chip mounter is the upgrade model of the CZ-108 model,but the Software is more operational. Z axis motor have update from Stepping drive to Servo drive.This can improve the running speed and stability. The maximum speed of the IPC Speed is 85,000CPH.
CZ-208 chip mounter is nice machine for quality LED products.It can suitable for LED light,bulb light,down lamp,Ceiling light,LED strip,LED driver board.
[Features]
1.Easy operation.
2.X / Y /Z axis all in servo motor and High-precision ball screw from Japan.It can ensure the stationarity and long perfomance life of this machine.
3.With the 8 placing heads and imported High-precision spring, 360 degree precise rotation during the machine running.
4.Visual positioning by the mark camera,high speed and precision.
5.Built-in vacuum generating and air pressure detecting device to prevent missing situation.
6.Automatic image recognition,improve the accuracy of the picking and placing.
7.Smoothly feeding by electric feeder,improve the work efficiency.
CZ-208 semi-auto chip mounter is the upgrade model of the CZ-108 model,but the Software is more operational. Z axis motor have update from Stepping drive to Servo drive.This can improve the running speed and stability. The maximum speed of the IPC Speed is 85,000CPH.
CZ-208 chip mounter is nice machine for quality LED products.It can suitable for LED light,bulb light,down lamp,Ceiling light,LED strip,LED driver board.
[Features]
1.Easy operation.
2.X / Y /Z axis all in servo motor and High-precision ball screw from Japan.It can ensure the stationarity and long perfomance life of this machine.
3.With the 8 placing heads and imported High-precision spring, 360 degree precise rotation during the machine running.
4.Visual positioning by the mark camera,high speed and precision.
5.Built-in vacuum generating and air pressure detecting device to prevent missing situation.
6.Automatic image recognition,improve the accuracy of the picking and placing.
7.Smoothly feeding by electric feeder,improve the work efficiency.

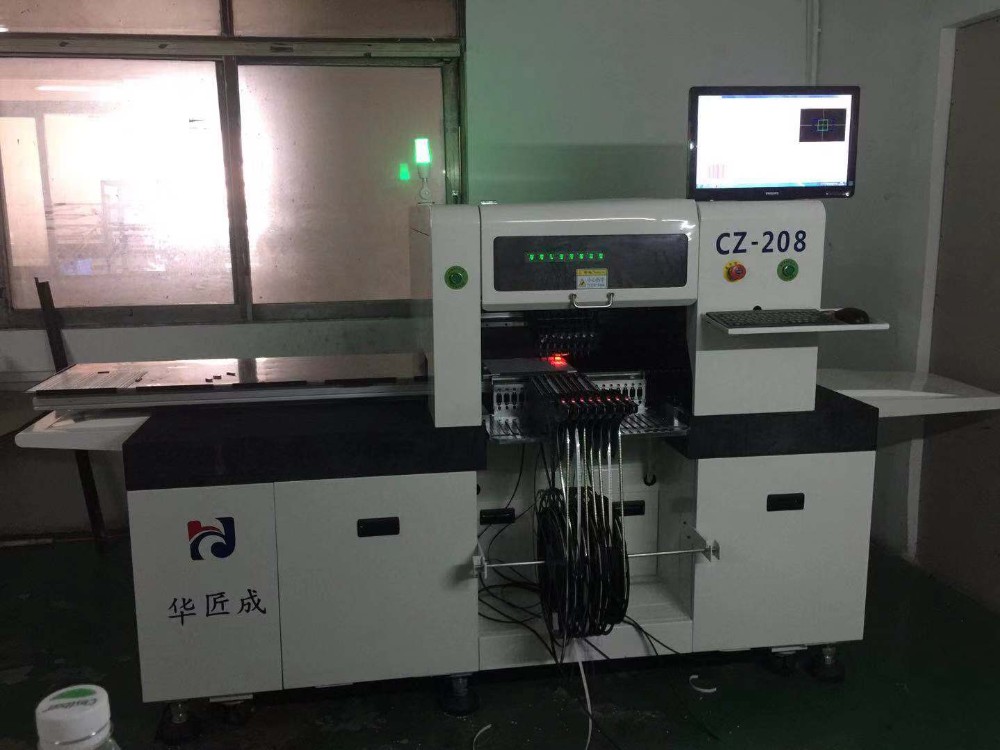

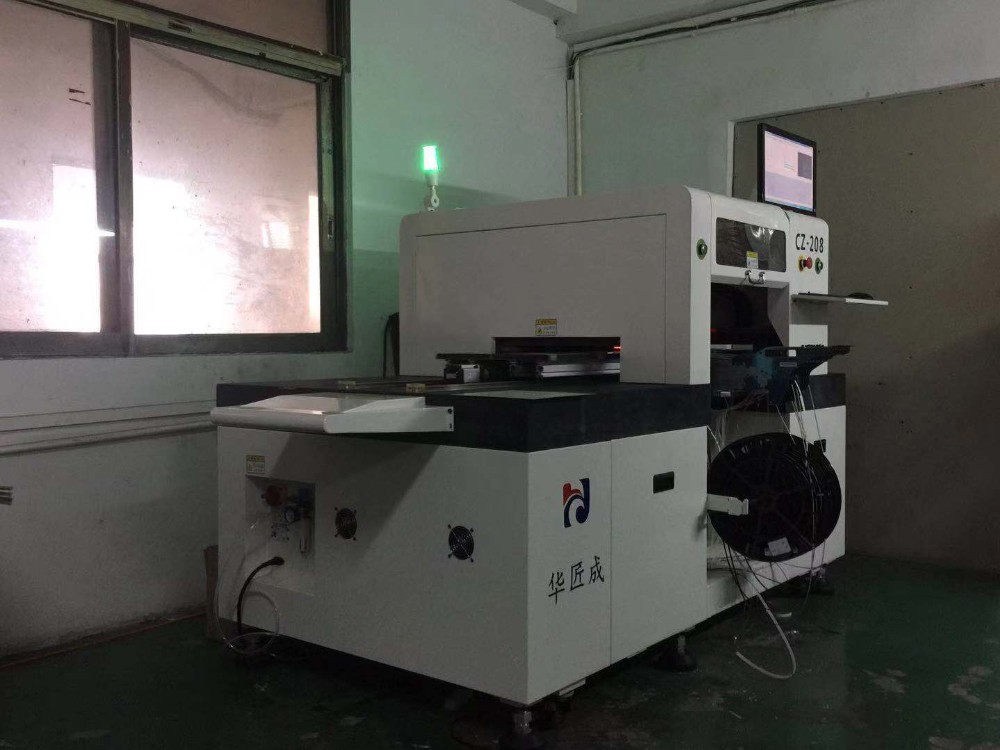

Detailed Images
