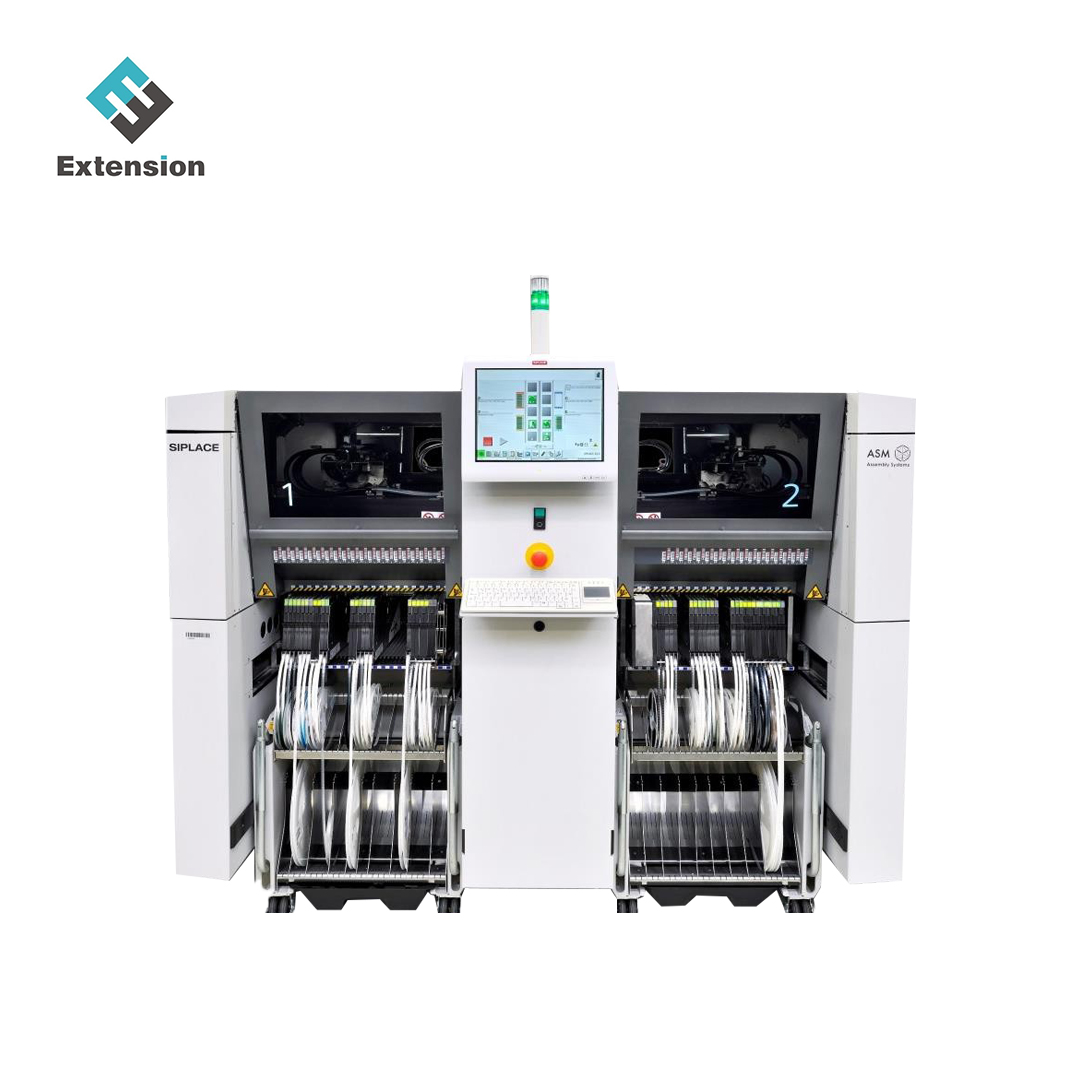

ASM SIPLACE X4i S SMT Pick and Place machine

Key Features

• Ultra-High-Speed Placement: Capable of placing a significant number of components per hour, greatly enhancing production throughput.
• High Precision: Utilizes advanced vision systems to ensure accurate component alignment and placement.
• Versatility: Supports a wide range of component sizes and types, from tiny chips to large ICs and connectors.
• User-Friendly Interface: Features an intuitive control interface for easy operation and programming.
• Modular Design: Can be configured with various heads and feeders to meet specific production requirements.
• Smart Feeders: Intelligent feeder system reduces setup time and minimizes errors.
• Quality Control: Integrated quality control systems ensure high reliability and low defect rates.

Specifications

• Placement Speed: Up to 120,000 components per hour (actual speed may vary depending on configuration and component types).
• Component Range: Supports components from 01005 (0.4mm x 0.2mm) to large ICs and connectors.
• Feeder Capacity: Compatible with multiple types of feeders, including tape feeders, tray feeders, and stick feeders.
• Vision System: High-resolution camera system for precise component alignment and placement.
• Board Size: Can handle PCB sizes up to 610mm x 508mm.
• Software: Advanced software platform supports both online and offline programming, optimizing the production process.

Applications

• Consumer Electronics: Ideal for producing smartphones, tablets, and other consumer electronic devices.
• Automotive Electronics: Suitable for assembling high-reliability automotive electronic products.
• Industrial Automation: Used in manufacturing control systems, sensors, and other industrial electronic components.
• Medical Devices: Meets the high precision and reliability requirements for assembling medical devices.

Advantages

• High Throughput: Designed for large-scale production with minimal downtime.
• Flexibility: Easily adapts to various production needs and different types of components.
• Scalability: Can be scaled up with additional modules or machines as production demands increase.
• Reliability: Maintains high performance and accuracy over long production runs.
