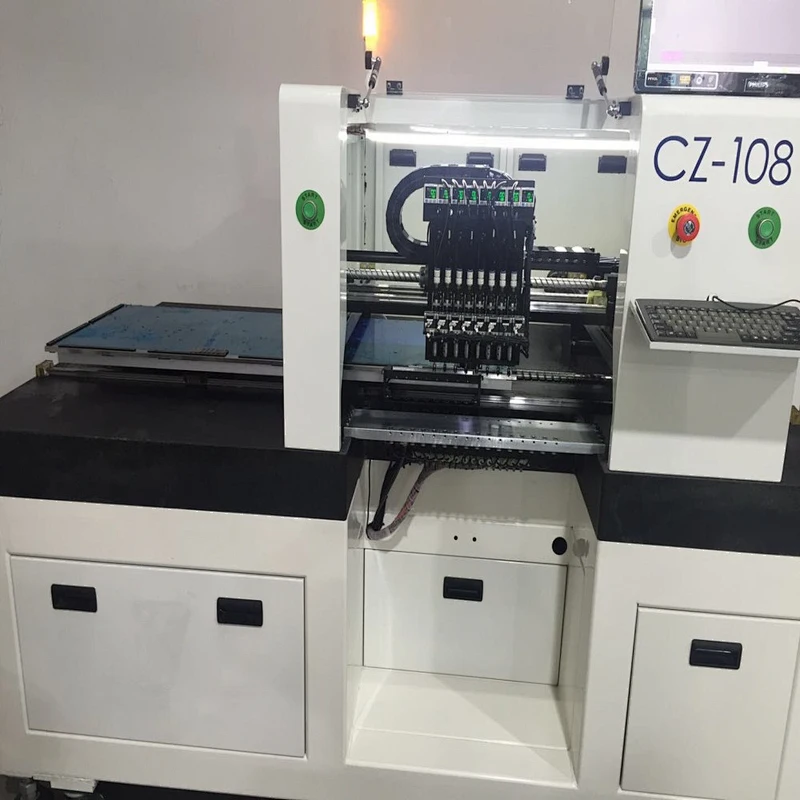

LED assembly wave soldering machine price/smt machine wave soldering machine factory price/ led pick and place

LED assembly wave soldering machine price/smt machine wave soldering machine factory price/ led pick and place

Model NO.: CZ-108
Minimum order quantity: 1 set
Supply Ability: 100 set / Day
Country of Origin: shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Brand Name:CZ-108
Model Number:CZ-108
Name:led pick and place
Model:CZ-108
Condition:New
Feature::with LED
Quantity of nountin:8
Theoretical CPH::75000 CPH
average CPH:28000 CPH--35000 CPH
Warranty:1 Year
WEIGHT:1500KG
Item:SMT pick place

Product Description

LED assembly wave soldering machine price/smt machine wave soldering machine factory price/ led pick and place

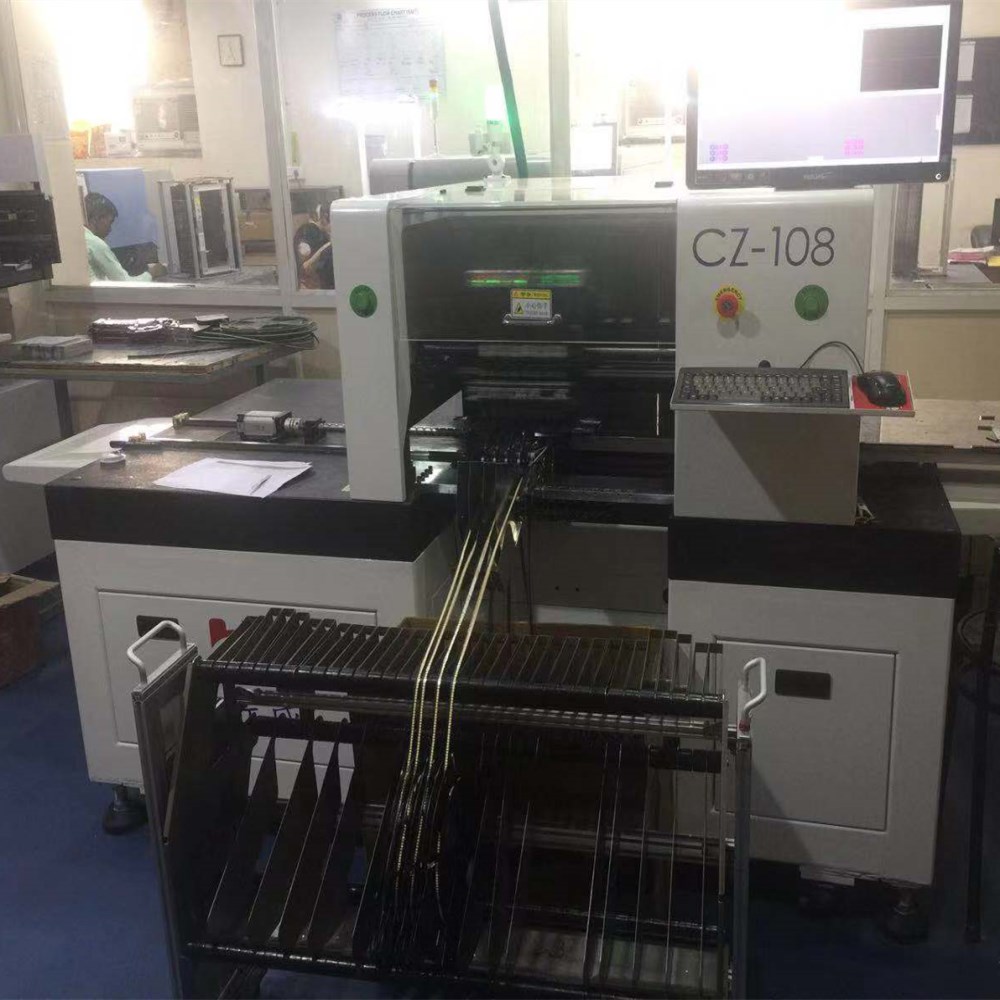

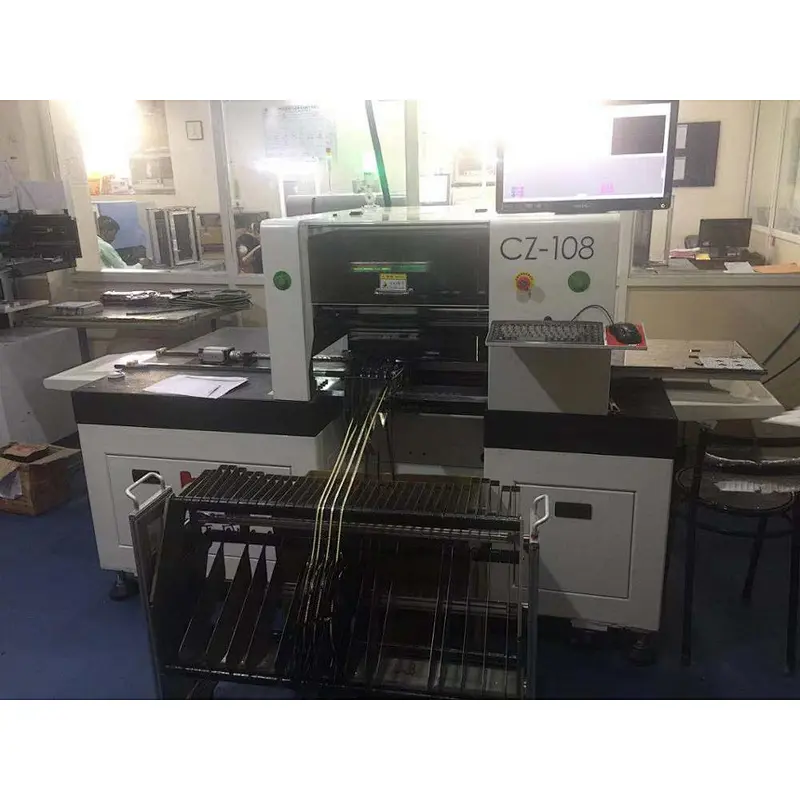

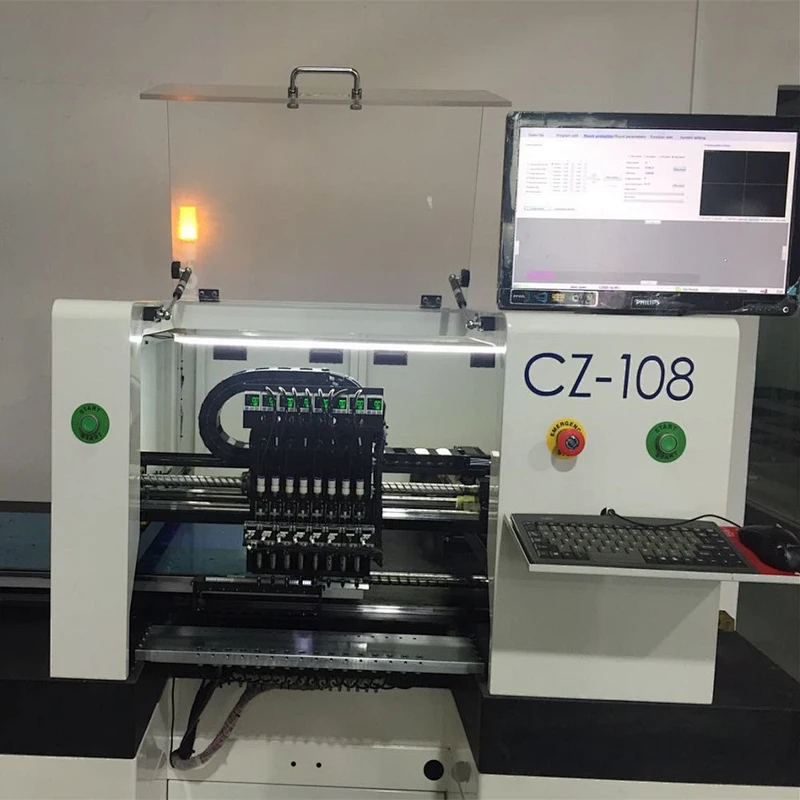

Name	LED Pick And Place Machine
1.Placement speed	75000 CPH (Theoretical) 28000 CPH--35000 CPH (average)
2.Targeting method	Visual positioning
3.Programming method	automatic correction of image recognition
4.Mechanical accuracy	± 0.02MM
5.Placement accuracy	±0.05MM
6.Maximum board size	1200MM*390MM
7.Maximum moving	2600MM*390MM
8.Maximum board thickness	6MM
9.Component type	0603-5050-7474, high power LED components
10.Qty for feeder	16 pcs (8mm)
11.Mounting head	8 heads
12.Cable	imported from Germany
13.Servo motor	imported from Japan
14.Ball screw	imported from Japan
15.Valve:	Japan CKD
16.Vacuum system	vacuum generator

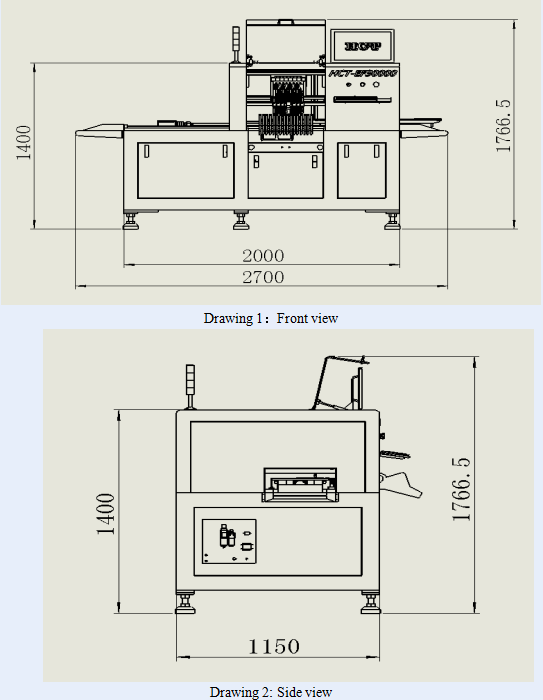

17.Machine size	2000MM1330MM1400MM
18.Working voltage	AC200V, 50HZ
19.Working pressure	0.5MPa
20.Machine weight	1500KG

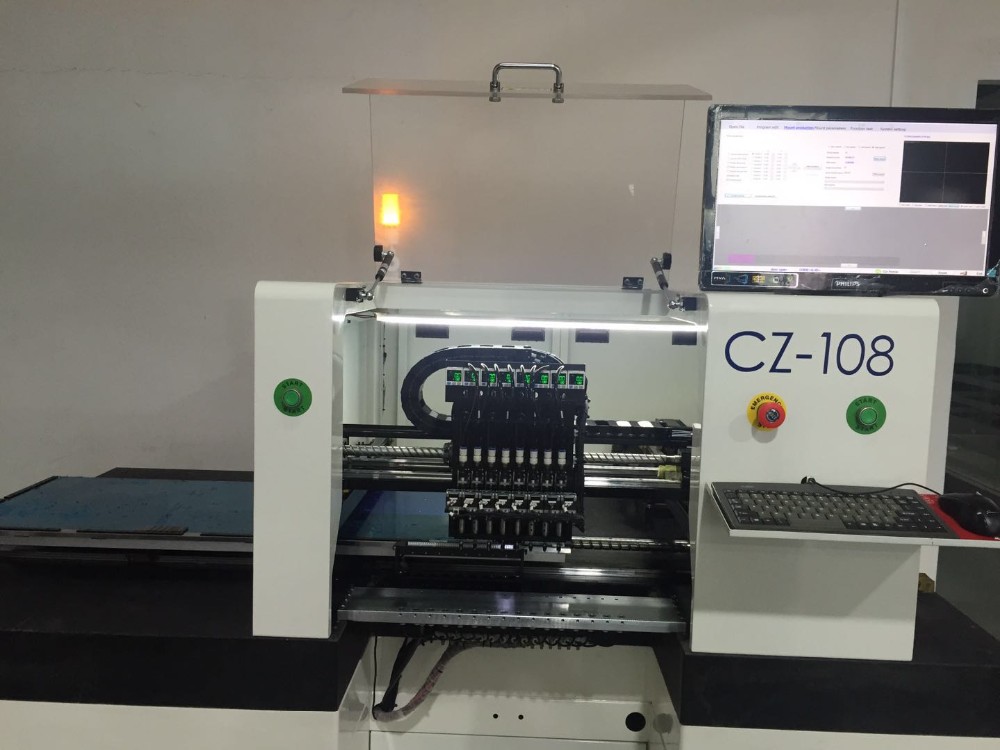

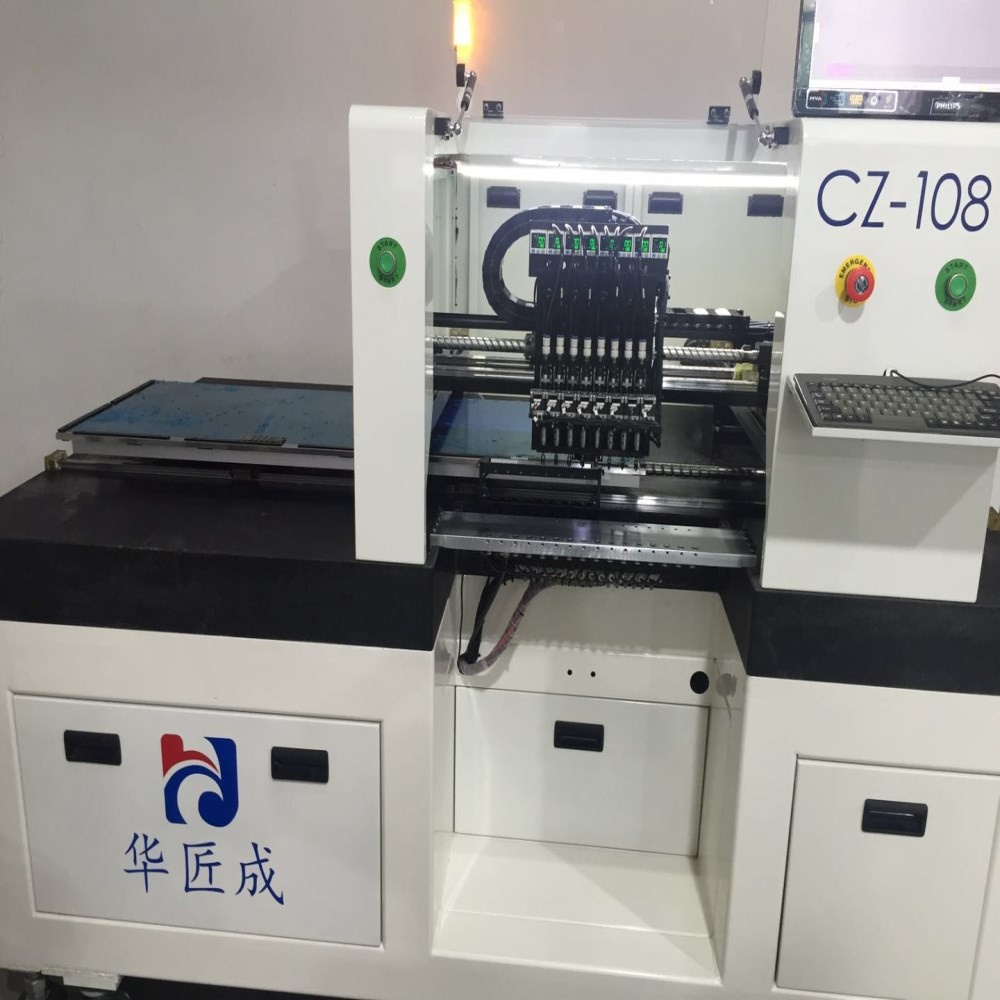

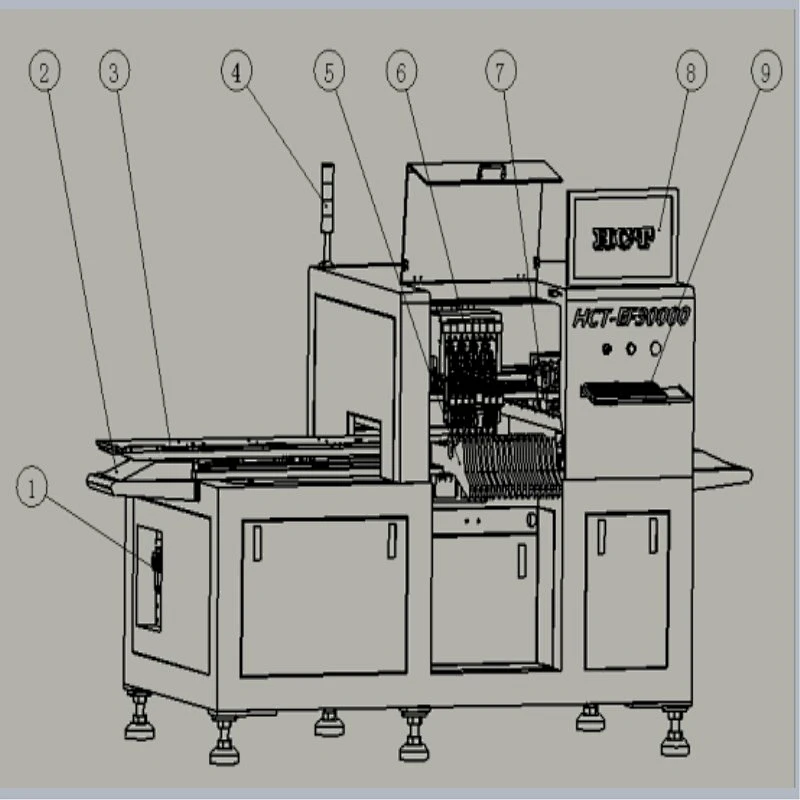

Detailed Images

1 Pneumatic filter
2 Protective device
3 Platform
4 Signal light
5 Feeder
6 Nozzle components
7 XY pick-up components
8 Displayer
9 Key board

Our Company

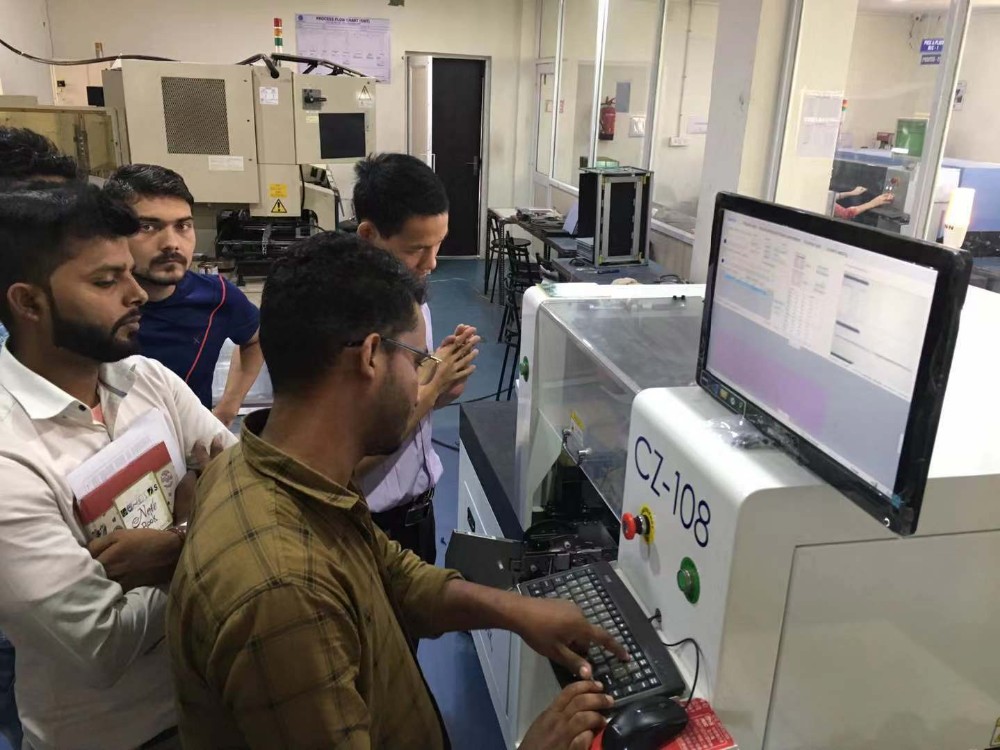

Our Service

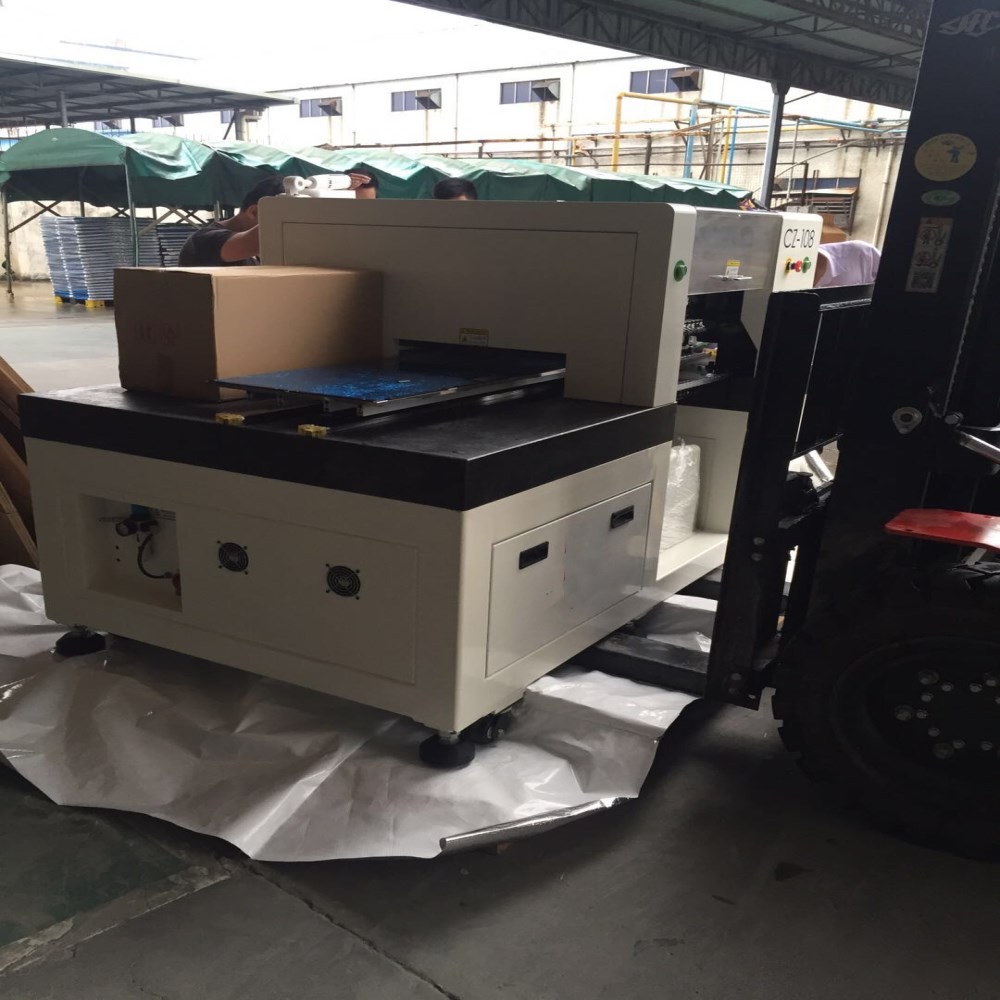

Packing & Delivery
